Product Description
STCA series smart temperature compensation attenuators provide temperature-variable attenuation based on thick-film thermistor elements on alumina substrates, enabling passive gain compensation across temperature extremes. With a compact footprint, rugged construction, protective coating, and operation from DC to 6 GHz, STCA series attenuators are ideal for RF and microwave circuits, supporting amplifier linearization, gain stabilization, level control, and temperature-sensitive signal conditioning applications. These attenuators are available with negative temperature coefficients from -0.003 to -0.010 dB/dB/°C in 0.001 dB/dB/°C increments, with attenuation values from 1 to 10 dB in 1 dB steps. They are offered with multiple mounting configurations—planar, single wrap, triple wrap, and gold terminations—to support both surface-mount assembly and gold-wire or gold-ribbon bonding. The thick-film resistor network determines attenuation based on thermistor material properties, laser-trimmed resistance values, and substrate thermal characteristics. These devices can fully replace imported products of the same series and type.
Attenuation :
1～10dBTCA Code :
-0.003～-0.010Mounting Style :
C3、W0、GRated Power :
0.1WFrequency Range :
DC～6GHzI. SPECIFICATIONS

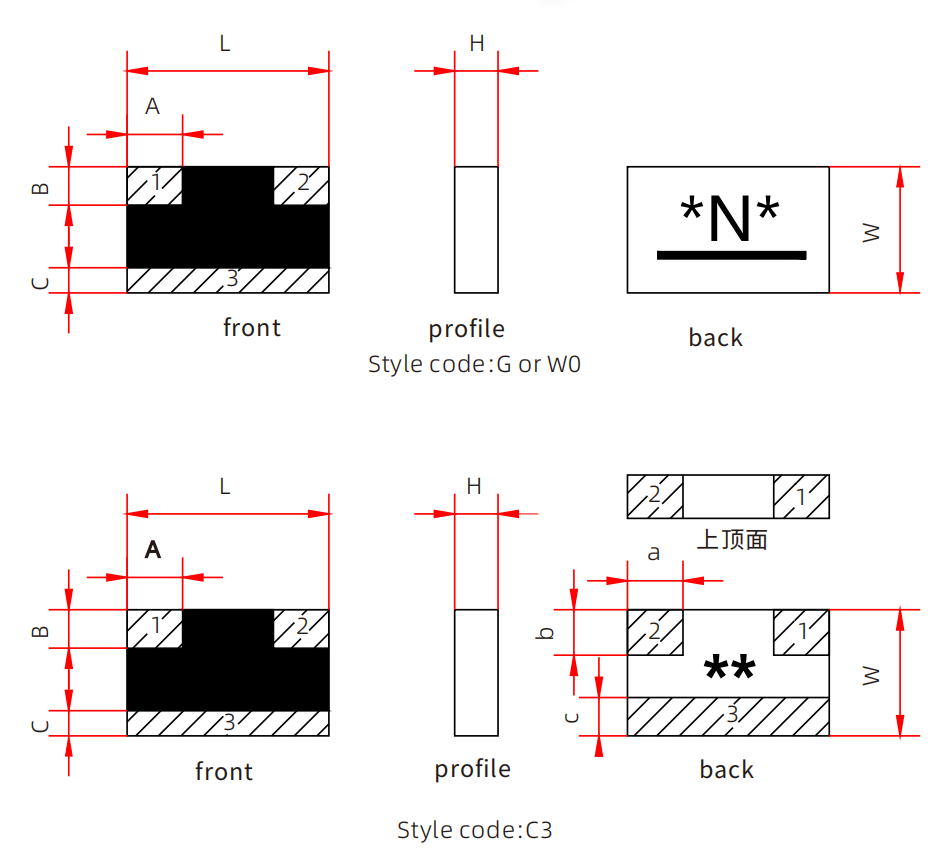

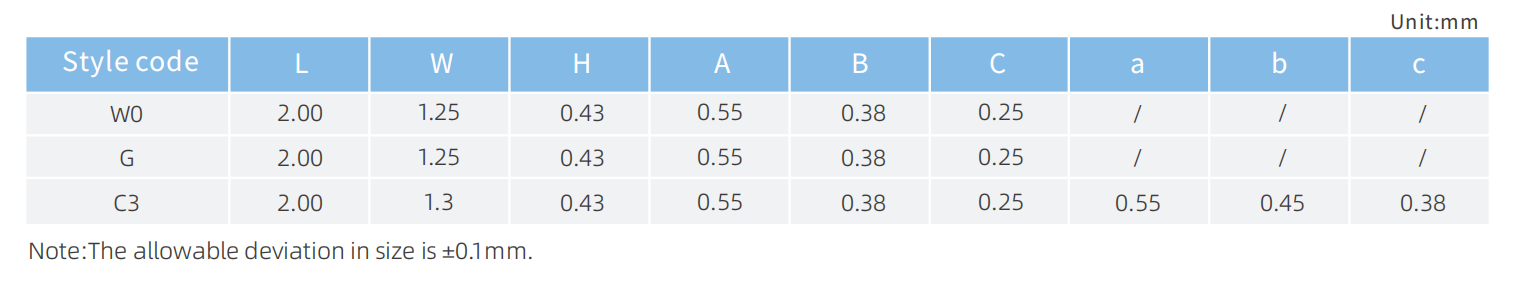

II. MOUNTING STYLE AND DIMENSIONS

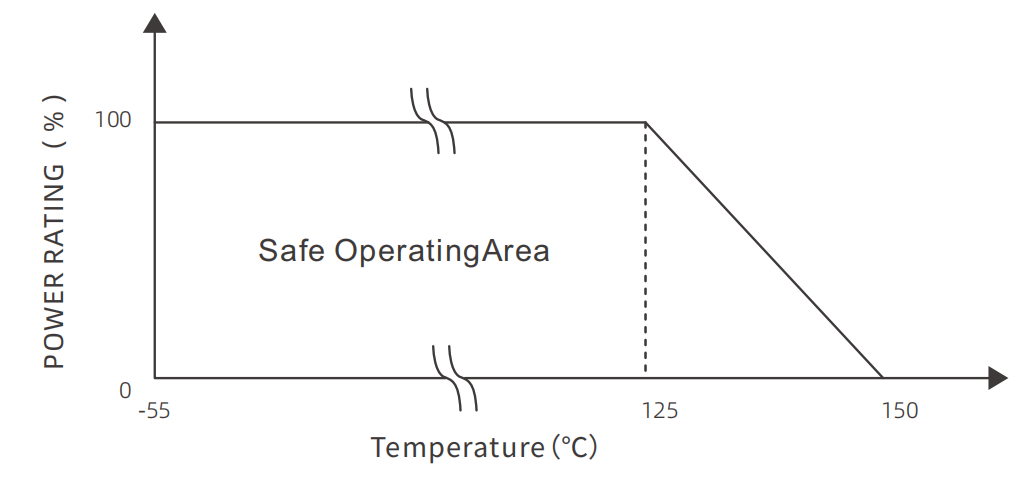

III. POWER RATING AND DERATING

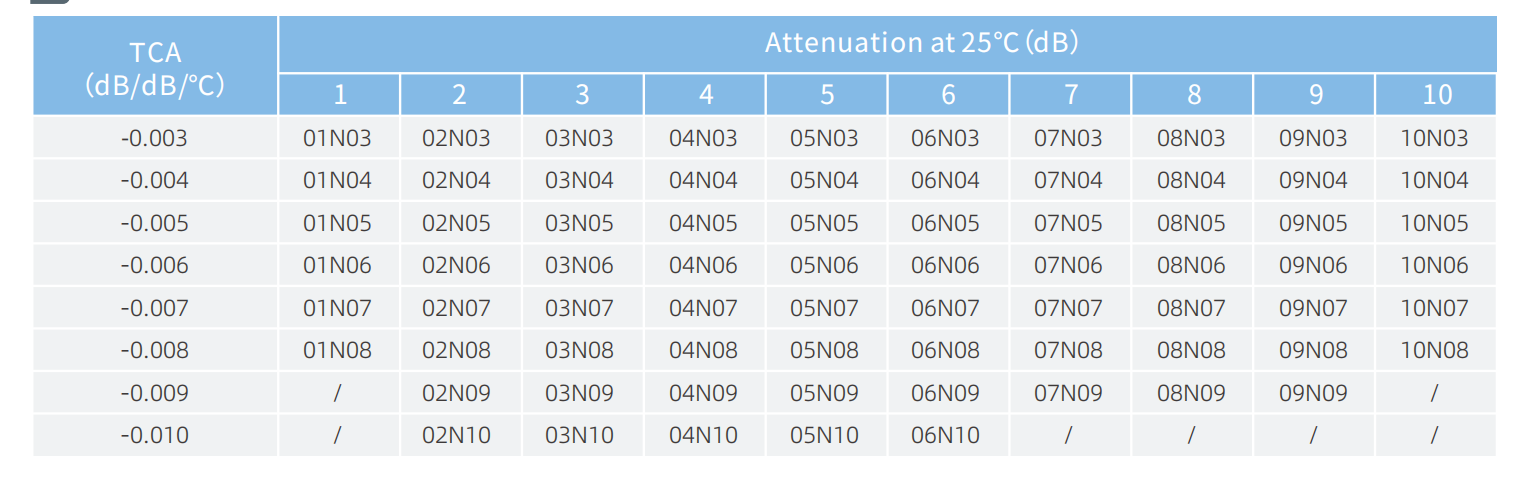

Ⅳ. AVAILABLE ATTENUATION AND TCA RANGE

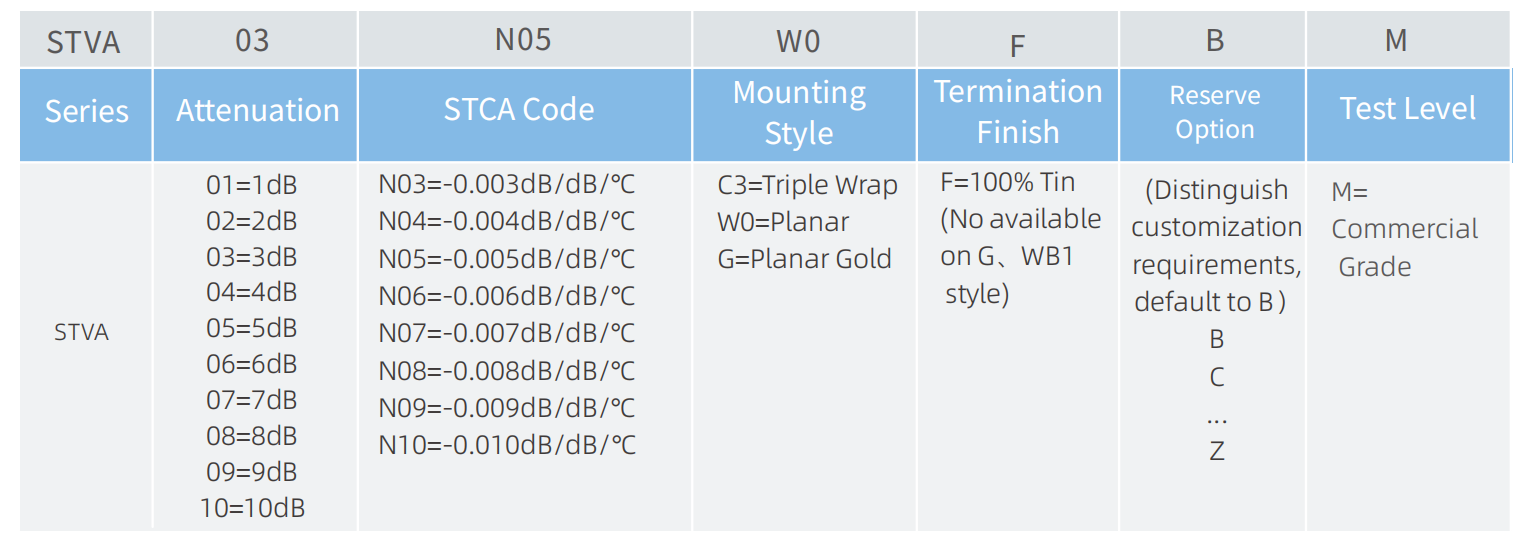

Ⅴ.PART NUMBERING CODE
