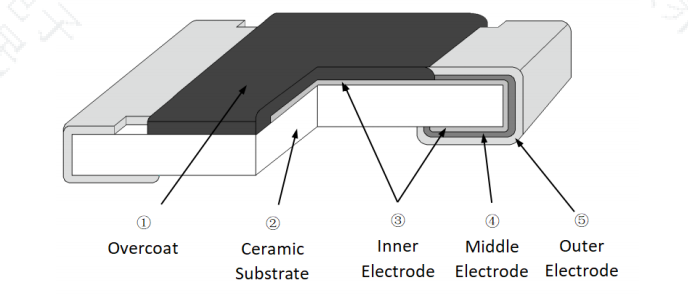

RC Series Thick Film Jumper Chip Resistors（ 01005-2512, 50mΩ Max ）

RC Series Thick Film Jumper Chip Resistors are designed for jumper connections in surface-mount circuits. The series is available in multiple case sizes, from RC0402 (01005) to RC6332 (2512), with power ratings ranging from 1/32 W to 1 W at 70°C. The maximum resistance is 50 mΩ, while the maximum current ranges from 0.5 A to 4 A depending on the case size. The series features Sn termination and is available in both bulk and tape-and-reel packaging.

ÉTIQUETTES CHAUDES : Thick Film Jumper Chip Resistor Jumper Chip Resistor RC Series Jumper Resistor 50mΩ Jumper Resistor 50mΩ Max Resistance 0.5A Jumper Resistor 4A Jumper Resistor 0.5A to 4A Jumper Resistor 1/32W to 1W Jumper Resistor Sn Termination Jumper Resistor 01005 to 2512 Jumper Resistor Torch Resistor

EN SAVOIR PLUS Télécharger

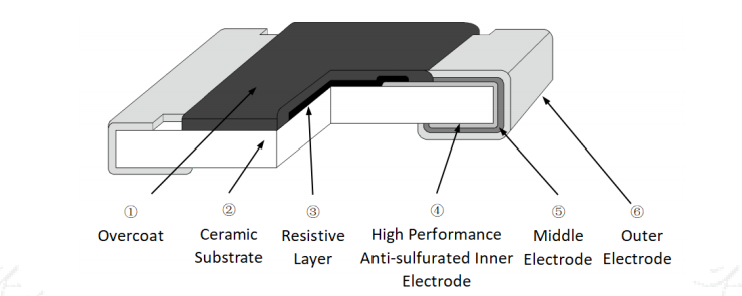

RW Series Anti-Sulfurated Thick Film Jumper Chip Resistors（ 0402-2512, 50mΩ Max )

RW Series Anti-Sulfurated Thick Film Jumper Chip Resistors feature a high-performance anti-sulfurated inner electrode and are available in sizes from RW1005 (0402) to RW6332 (2512). The series offers power ratings from 1/16 W to 1 W at 70°C, with maximum current ratings ranging from 1 A to 4 A depending on the size. The maximum resistance is 50 mΩ. Sn termination is specified, with both bulk and tape-and-reel packaging options available.

ÉTIQUETTES CHAUDES : Anti-Sulfurated Thick Film Jumper Chip Resistor Anti-Sulfurated Jumper Chip Resistor Thick Film Jumper Chip Resistor Jumper Chip Resistor RW Series Jumper Resistor 50mΩ Jumper Resistor 50mΩ Max Resistance 1A to 4A Jumper Resistor 1/16W to 1W Jumper Resistor Sn Termination Jumper Resistor Torch Resistor

EN SAVOIR PLUS Télécharger

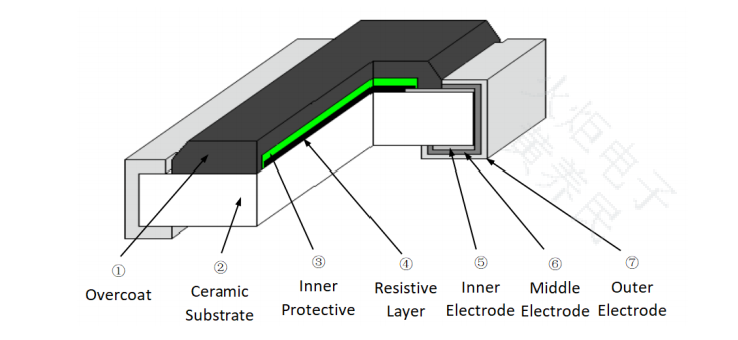

RC Series Wide Electrode Thick Film Jumper Chip Resistors ( 0612–1225, ≤50mΩ )

RC Series Wide Electrode Thick Film Jumper Chip Resistors feature a wide electrode structure and are designed for high current conduction applications. The series is available in 0612 and 1225 sizes, with power ratings of 3/4 W and 3 W respectively. These jumper chip resistors provide low resistance characteristics with a maximum resistance of ≤50 mΩ and support current ratings up to 7.74 A. The series is suitable for applications requiring high current conduction and compact jumper resistor solutions.

ÉTIQUETTES CHAUDES : Wide Electrode Jumper Chip Resistor Thick Film Jumper Chip Resistor Jumper Chip Resistor Zero Ohm Chip Resistor Low Resistance Jumper Resistor Thick Film Chip Resistor High Current Jumper Resistor 0612 Jumper Resistor 1225 Jumper Resistor ≤50mΩ Jumper Resistor

EN SAVOIR PLUS Télécharger
