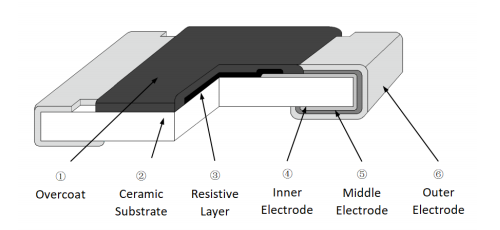

RS Series Thick Film Chip Resistors（ 0402–2512, 1Ω–1MΩ)

RS Series Thick Film Chip Resistors are available in sizes from 0402 to 2512, with normal, double, and triple power options depending on the model. Power ratings range from 0.0625 W to 2 W at 70°C. The series covers resistance values from 1 Ω to 1 MΩ, with maximum working voltages ranging from 50 V to 250 V. TCR is ±200 ppm/°C for resistance values from 1 Ω to below 10 Ω and ±100 ppm/°C for resistance values from 10 Ω to 1 MΩ. Available resistance tolerances include ±5%, ±10%, and ±20%. Bulk and tape-and-reel packaging options are available.

ÉTIQUETTES CHAUDES : RS Series Resistor Double Power Chip Resistor Thick Film Chip Resistor Thick Film Resistor Chip Resistor 0402 to 2512 Chip Resistor 1Ω to 1MΩ Resistor Up to 2W Chip Resistor Torch Resistor

EN SAVOIR PLUS Télécharger

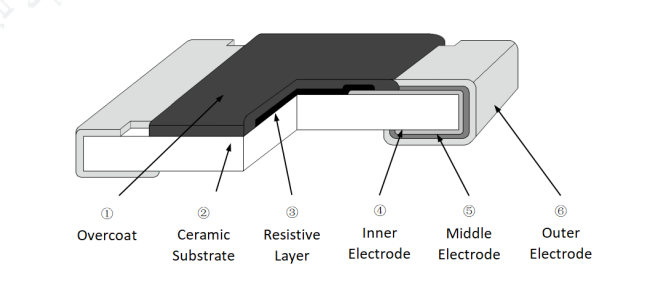

RC Series Double Power Thick Film Chip Resistors （ 0402-2512, 1Ω–10MΩ )

RC Series Double Power Thick Film Chip Resistors are available in sizes from RC1005 (0402) to RC6332 (2512), with power ratings ranging from 1/8 W to 2 W at 70°C. The series offers resistance values from 1 Ω to 10 MΩ and maximum working voltages from 50 V to 250 V. For resistance values from 1 Ω to below 10 Ω, TCR options include ±200 ppm/°C and -200 to +500 ppm/°C. For resistance values from 10 Ω to 10 MΩ, TCR options include ±100 ppm/°C and ±300 ppm/°C. Resistance tolerances of ±1% and ±5% are available, with both bulk and tape-and-reel packaging options.

ÉTIQUETTES CHAUDES : Double Power Thick Film Chip Resistor Double Power Chip Resistor Thick Film Chip Resistor 1Ω to 10MΩ Resistor 1/8W to 2W Chip Resistor 50V to 250V Chip Resistor 0402 to 2512 Chip Resistor RC Series Resistor Double Power Resistor

EN SAVOIR PLUS Télécharger
